CSCML2020 Reverse Engineering Write-up
1. TimeTravel
This task’s prompt was about time travelling, so I first assumed that it has to deal with time manipulation inside the executable.
When I first ran the executable, this is what I get. Seems like we are just going through these dialogs forever, and nothing is being prompt for us to input
Let’s open it in IDA and see what we get!
First, we need to look for the main function. This is simple because we can start at the entry point and look for 3 push calls followed by a function call. 96.69% of the time, this function is main, and in this case, it is sub_411AE0.

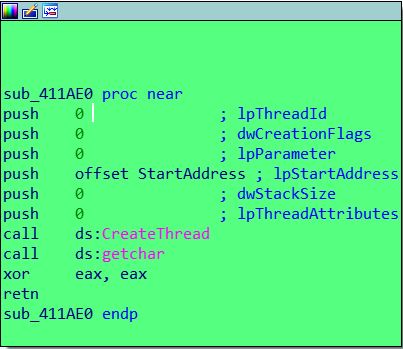

Pretty straightforward function! Main is calling CreateThread, and this thread is going to execute the code at StartAddress.

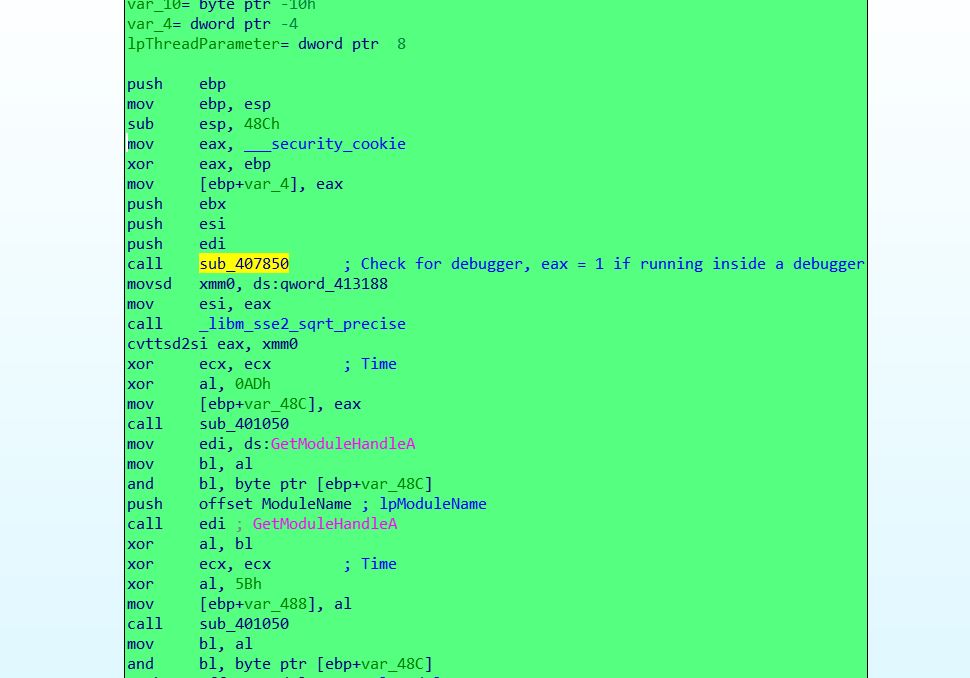

Let’s dive into this function! First, we see that this function makes a called to sub_407850. If you look into this function, you will see a call to IsDebuggerPresent. We can tell that this function is going to check if the code is being ran in a debugger. If it is, it might terminate or something.
Following this, we see a bunch of GetModuleHandleA, but we don’t see any call to the modules being returned. Therefore, I just ignored it when looking at it!

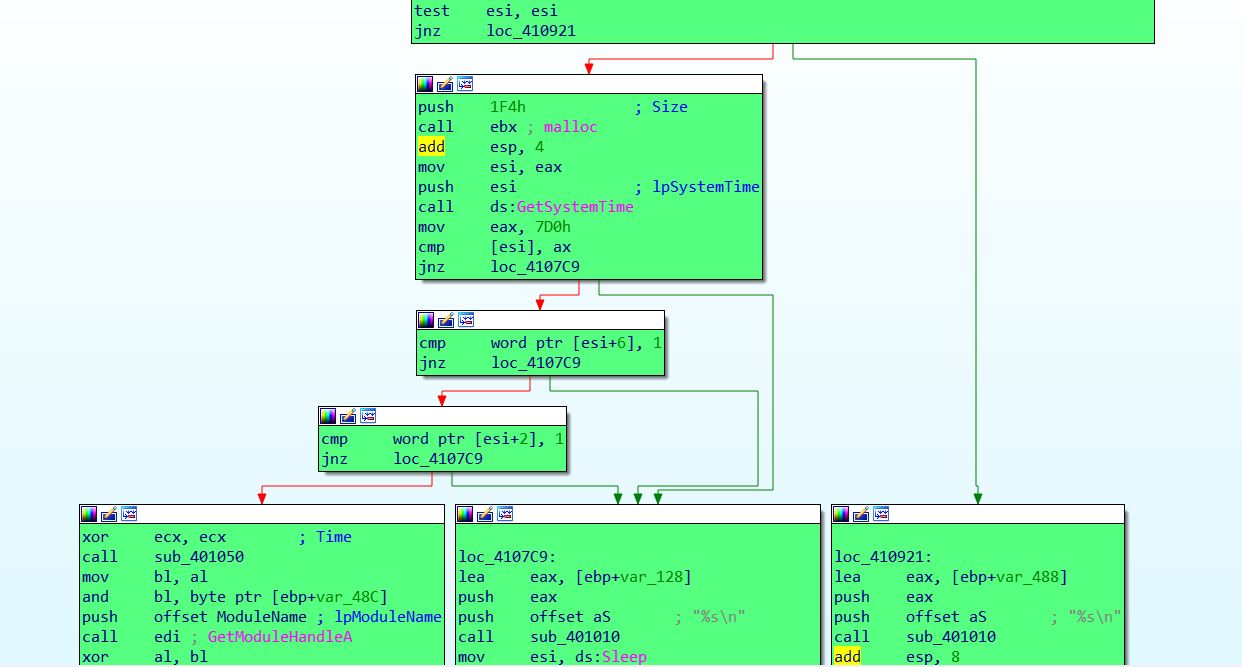

This is the interesting part of the code. Earlier, we saw that the result of sub_407850 is stored in eax as 1 if we are using a debugger, and then this value in eax is stored inside esi.

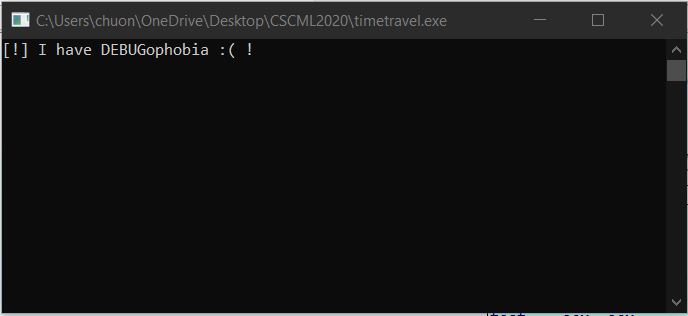

Here, we are testing if esi is 0 or not. If it is not, we branch to loc_410921. If you execute the code through IDA, you will see this. It seems like we want to avoid branching to this section.
Also, from earlier when we ran it, it seems like the code branch to loc_1207C9 to bring all of those dialogs. We might want to avoid this branch too. There are a few checks that we need to bypass.
Seems like it’s calling GetSystemTime and read the system time into the buffer stored at esi. This buffer will be a struct of SYSTEMTIME. From there, we can assume that [esi] = wYear, [esi + 2] = wMonth, and [esi + 6] = wDay. The code is checking if the year is 0x7D0 which is 2000, and month and day are 1.
We can simply use OllyDBG to patch this executable and solve it!
First, we need to change the debugger check into a bunch of 0x90 (NOPS) so we ignore this jump completely.
test esi, esi
jnz loc_120921
Second, we need to change the date to the current time on the system. Currently, it is 07/06/2020 in my machine, so let’s change the checks to that. Here is how I patch the executable.
After extract the newly patched executable, we can run it and the flag is given!!
2. Roulette
I did not solve this challenge during the time of the CTF, but I came back and worked on it!

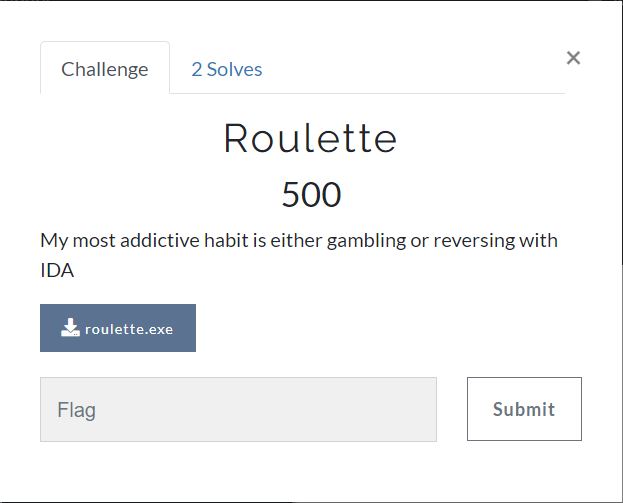

This is the prompt.
This challenge seems to have a roulette theme, but beside that, nothing much can be get from the prompt. When we run the executable, nothing shows up, which lets us know that we have to use a debugger for it. Let’s throw it into IDA!
First, it seems like we checking if argc is 2 or not, which means the executable takes in a command line parameter, and according to the prompt, it’s taking in the flag.
If the flag is given, we will branch to the right. sub_BB3180 is a special fast-call function that is used to obsfucate the function calling, making static analysis harder. However, after steping through the code, I notice that this returns a function address into eax depending on the value of edx and ecx.
First, it’s calling sub_BB32D0. This function makes a series of calls using the obsfucating method above, but generally, it looks something like this. The calls are GetModuleFileNameA, GetLastError, and CreateFileA. Basically, it’s checking the executable’s existence! We don’t need to worry much about this.
Next, it’s calling GetModuleHandle with a null parameter, which will returns the handle to the current executable.
Then, it makes a call to sub_BB33A0. This function took me a while to process, and here’s the code in BinaryNinja.
004033b4 int32_t __saved_ebp
004033b4 int32_t* ebp_1 = &__saved_ebp
004033be int32_t eax_1 = *data_406004 ^ &__saved_ebp
004033d7 unimplemented {punpcklbw xmm0, xmm0}
004033de unimplemented {punpcklwd xmm0, xmm0}
004033e7 int32_t var_20
004033e7 int32_t var_54 = &var_20
004033e8 unimplemented {pshufd xmm0, xmm0, 0x0}
004033f9 if (sub_403180(0x6ddb9555, 0x60afc95d)(file_handle) != 0) // getFileSize(file_handle)
00403401 int32_t curr_file_size = var_20
00403419 int32_t heap_handle = sub_403180(0x6ddb9555, 0x36c007a2)(4, curr_file_size) // GetProcessHeap
// rtlAllocateHeap(heap_handle, HEAP_GENERATE_EXCEPTIONS, file_size)
0040342b void* heap_pointer = sub_403180(0x1edab0ed, 0x3be94c5a)(heap_handle)
// if heap_pointer != null and ReadFile(file_handle, heap_pointer, curr_file_size, ...)
// Read file into heap
00403454 if (heap_pointer != 0 && sub_403180(0x6ddb9555, 0x84d15061)(file_handle, heap_pointer, curr_file_size, 0, 0) != 0)
0040345c int32_t PE_header_offset = *(heap_pointer + 0x3c) // 0x3c of the file = offset to PE header
// size_of_header - code base?
00403466 void* esi_3 = *(PE_header_offset + heap_pointer + 0x54) - *(PE_header_offset + heap_pointer + 0x2c)
0040346a *(PE_header_offset + heap_pointer + 0x28) = what_is_this // move arg2 into PE entry point. NOTE: WHAT IS ARG2??
0040347b sub_401010(0x405130) // vfprintf(FILE * stream, const char * format, va_list arg );
0040348a int32_t ecx_1 = 3
0040348f void* eax_11 = esi_3 + what_is_this + 0x20 + heap_pointer
00403491 int32_t temp0_1
00403491 do
00403491 eax_11 = eax_11 + 0x40
00403498 unimplemented {pxor xmm0, xmm1}
0040349c *(eax_11 + 0xffffffa0) = *(eax_11 + 0xffffffa0)
004034a4 unimplemented {pxor xmm0, xmm1}
004034a8 *(eax_11 + 0xffffffb0) = *(eax_11 + 0xffffffb0)
004034b0 unimplemented {pxor xmm0, xmm1}
004034b4 *(eax_11 + 0xffffffc0) = *(eax_11 + 0xffffffc0)
004034bc unimplemented {pxor xmm0, xmm1}
004034c0 *(eax_11 + 0xffffffd0) = *(eax_11 + 0xffffffd0)
004034c4 temp0_1 = ecx_1
004034c4 ecx_1 = ecx_1 - 1
004034c4 while (temp0_1 != 1)
004034df int32_t eax_13 = sub_403180(0x6ddb9555, 0x36c007a2)(4, 0x104) // getProcessHeap()
004034f1 int32_t temp_file_name = sub_403180(0x1edab0ed, 0x3be94c5a)(eax_13) // rltAllocateHeap
// GetTempFileName("routlette", )
0040351b if (temp_file_name != 0 && sub_403180(0x6ddb9555, 0xea86aa5d)(0x405148, 0x40513c, 0, temp_file_name) != 0) {"roulette"}
// CreateFile()
00403542 int32_t temp_file_handle = sub_403180(0x6ddb9555, 0x687d20fa)(temp_file_name, 0xc0000000, 3, 0, 4, 0, 0)
// if temp_file_handle != INVALID_FILE_HANDLE and WriteFile(temp_file_handle, heap_pointer, curr_file_size) != 0
0040357b if (temp_file_handle != 0xffffffff && sub_403180(0x6ddb9555, 0xf1d207d0)(temp_file_handle, heap_pointer, curr_file_size, 0, 0) != 0)
00403576 sub_403180(0x6ddb9555, 0xfdb928e7)(temp_file_handle) // CloseHandle(temp_file_handle)
00403591 int32_t process_heap_handle = sub_403180(0x6ddb9555, 0x36c007a2)(0, heap_pointer) // GetProcessHeap()
0040359e sub_403180(0x6ddb9555, 0x4b184b05)(process_heap_handle) // HeapFree(proces_heap_handle)
004035b9 return sub_4037cb(eax_1 ^ &__saved_ebp, ebp_1, arg3, var_54)
004035bc exit(status: 1)
004035bc noreturn
Let’s break it down. First, using the file handle, it calls GetFileSize to get the size of this executable. Then, it calls GetProcessHeap and RtlAllocateHeap to allocate a buffer of the size we just got.
It will attempt to read the entire file into this heap buffer, and change the entry point of this executable in the buffer into some value. Next, it will xor the block of size 0x120 bytes with the flag[40] character. Afterward, it calls GetTempFileName and CreateFileA to create a temporary file, and calls WriteFile to write the executable inside the buffer into this temp file.
Overall, we can see what they are doing. They change the entrypoint to a block of code, encrypt the block with the 41th character of our flag. Next, we see main calls the function sub_BB35D0 to check the flag.
This function is huge, so I’m not gonna show it. Basically, it’s creating a string “./temp_file our_flag” (depending on what the name of the temporary file and our flag is), calls CreateProcess to execute this temporary file with our flag as the command line argument.
Then, it will calls WaitForSingleObjectEx to wait for this process to end and calls GetExitCodeProcess. This exit code must be 0 in order for everything to works, and this means that our temporary file must execute and exit normally.
This is a problem because the block of code at the entry point was xor-ed with our flag’s character, so it won’t be making much sense, and will not exit properly by executing invalid code. We must make the xor-ed code result valid code.
Through PEid, we can see that the entry point of this temp file is 0x2FE0, and we must make the code at this entry point work. The simplest method is to make the first byte at this point 0x55, which is push ebp. This instruction is the typical starting instruction or any function, so let’s try that.
The first byte at 0x2FE0 of the original code is 0x38, and we need to xor it with something to make it 0x55. Since XOR is reversible, we can calculate this by xor-ing the original code and the result together. 0x38 ^ 0x55 = 0x6d, and in ASCII, 0x6d is the character ‘m’.
Let’s try making our flag ‘mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm’, which is 50 ‘m’. We only care about flag[40], and the rest does not matter. Let’s run it and see what we get for the temporary code.
It looks perfect like a legit function!! Let’s see what it’s executing here. First, it’s calling GetCommandLineA to retrieve the flag from the command line argument. Next, it calls the function sub_4B32D0 to do the existence checking like the parent executable. sub_4B33A0 is the same function to generate the temp file as above.
One thing special is that instead of using flag[40] to perform bitwise XOR, it’s using 0x13 on line 0x300E movzx ecx, byte ptr [edi+13h]. It seems like this number will change everytime we generate a new file. This makes sense because it seems like we need to fixed our flag ‘mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm’ at one index at a time, with the first time being 40 and this time being 0x13.
This might recursively calls for a lot of time, and we can perform our XOR calculation to change our flag the same way.
We know that the index of every file is at an index of 0x3011 - 0x2FE0 + 1 or 0x32 constant, and this should be easy. We can write a simple python script to recursively do this.
from __future__ import print_function
import sys
import os.path
import pefile
import glob, os, os.path
from shutil import copyfile, move
from threading import Thread
import subprocess
from time import sleep
current_flag = []
# fill flag up with 50 'm's
curr_flag = "m" * 50
for i in range(50):
current_flag.append(curr_flag[i])
# capture temp file and write it into file "file_name"
def copy_tmp_file(file_name):
done = False
while not done:
for temp_file in glob.glob("*.tmp"):
file_size = os.path.getsize(temp_file)
if file_size > 200:
copyfile(temp_file, file_name)
done = True
break
# return entry point of executable
def find_entry_point_section(pe_file, entry_point):
for section in pe_file.sections:
if section.contains_rva(entry_point):
return section
return None
def get_index_of_flag(file_path):
current_index = 0
pe_file = pefile.PE(file_path, fast_load=True)
# Acquire entrypoint for PE
entry_point = pe_file.OPTIONAL_HEADER.AddressOfEntryPoint
code_section = find_entry_point_section(pe_file, entry_point)
if not code_section:
return
# Get bytes at the section
code_at_start = code_section.get_data(entry_point, 0x32)
# Get last opcode (it contains the index)
current_index = code_at_start[-1:]
current_index = int.from_bytes(current_index, "little") - 1
print('Index:', current_index)
pe_file.close()
return current_index
def get_first_opcode(file_path):
current_opcode = 0
pe = pefile.PE(file_path, fast_load=True)
# Acquire entrypoint for PE
eop = pe.OPTIONAL_HEADER.AddressOfEntryPoint
code_section = find_entry_point_section(pe, eop)
if not code_section:
return
# get first byte at entry point
code_at_start = code_section.get_data(eop, 1)
# Get first opcode
bad_opcode = code_at_start[0]
print('Opcode:', hex(bad_opcode))
pe.close()
return bad_opcode
def main():
capture_file_thread = Thread(target=copy_tmp_file, args=("current.exe", ))
capture_file_thread.start()
subprocess.call(["d", ''.join(current_flag)], executable="roulette.exe", stdout=subprocess.DEVNULL, stderr=subprocess.DEVNULL)
sleep(0.5)
try:
while True:
# Get index of current exe
current_index = get_index_of_flag("current.exe")
# Capture tmp file when it's being generated and copy it to "temporary.exe"
capture_file_thread = Thread(target=copy_tmp_file, args=("temporary.exe", ))
# we will use temporary.exe to read what is the opcode of the next one
capture_file_thread.start()
# Call current exe file, at this point, temporary.exe = new temp file
subprocess.call(["d", ''.join(current_flag)], executable="current.exe")
# Acquire first opcode from start function
bad_opcode = get_first_opcode("temporary.exe")
os.remove("temporary.exe")
sleep(0.5)
# Calculate character to get proper `push ebp` or 0x55
# opcode should be 0x55 in the end
good_opcode = chr(bad_opcode ^ 0x55 ^ ord(current_flag[current_index]))
print('Replace flag[' + current_index + '] with ' + good_opcode)
current_flag[current_index] = good_opcode
print('Flag: ' + ''.join(current_flag))
# copy new temp file into _current.exe, then call current.exe, capture the temp file and move the previous temp file into
# this current temp file
capture_file_thread = Thread(target=copy_tmp_file, args=("_current.exe", ))
capture_file_thread.start()
subprocess.call(["d", ''.join(current_flag)], executable="current.exe")
move("_current.exe", "current.exe")
sleep(0.5)
except Exception:
# once we get no more file to read, we finish our flag.
exit(print('Final Flag: ' + ''.join(current_flag)))
if __name__ == '__main__':
main()
After running the python script for a while, we will see something like this! The correct flag is cscml2020{p3_i5_my_f4v0rit3_r0ul3tt3_f0rm4t}.
Huge shoutout to 1byte for helping me figuring out how to write the script to check the files recursively!!
